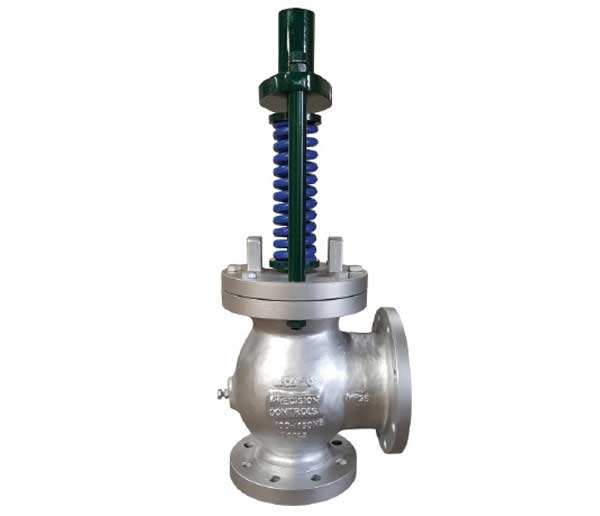

Pressure Relief Cast Steel Safety Valves

Our Pressure Relief Safety Valve is designed as a Pop-Up type valve. On exceeding the set pressure, the valve opens to discharge the excess built-up pressure. After relieving the excess pressure, the valve automatically returns to its original position. The stainless steel internals (Seat & Plug) ensure that there is no leakage while the valve is in operation. By replacing only the spring, it is possible to change the set pressure range.

Size: 40 x 50 NB,50 x 80 NB,80 x 100NB,100 x 150NB, 150NB x 200NB & 200 x 250NB
End Connections: Flanged Ends To ANSI 300.
Material: Cast Steel Body (WCB) With SS Internal
IBR Certificate: Available For IBR Applications
Soft Seating: Also Available for Air Application
Larger Sizes: Available On Request
Min. Blow Off Pressure: 0.35 kg/cm2
Max. Blow Off Pressure: 17.5 kg/cm2
