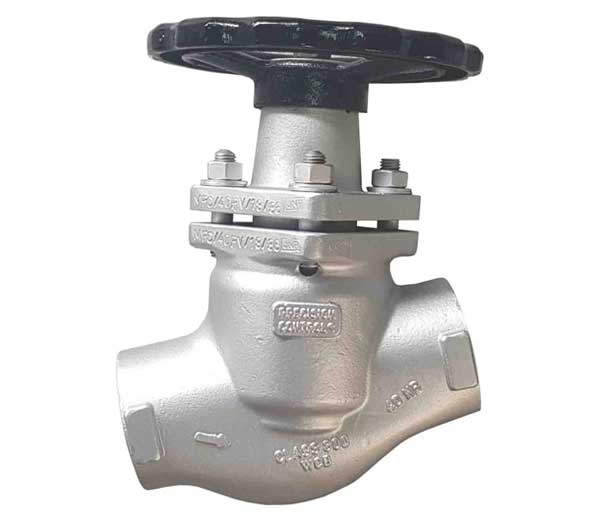

Piston Valves ( Screwed / Socket Weld )
Our Socket/Screwed End Piston Valves are manufactured to class 800 pressure rating. The MPC Piston Valve is a seat-less and glandless valve. (The seat and gland are replaced by lower and upper sealing rings). The inclined bonnet design results in uniform contours and improve flow characteristics. The unique design hence ensures a long life even at temperatures as high as 427oC.
- Sizes Available: 15 NB, 20 NB, 25 NB, 40 NB, 50 NB.
- End Connections: Socket Weld / Screwed BSP Ends
- Options: IBR / Non-IBR
- MOC: Carbon Steel (A216 WCB) with SS Internals.
- Min. Blow Off Pressure: 0.35 kg/cm2
- Max. Blow Off Pressure: 17.5 kg/cm2
