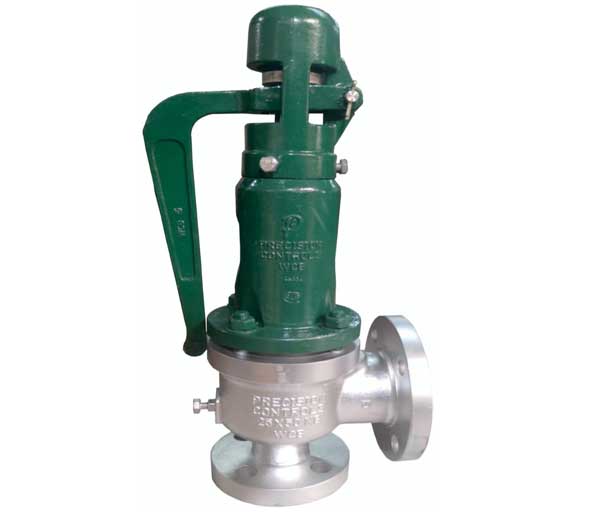

Full Lift Safety Valves
Our Pressure Relief Safety Valve is designed as a Full Lift type. It is specifically used for Boiler Mounting. However, it can also be used On-Line and on Blow-Down Vessels. Our safety valve has a conventional design with a Closed Type Perforated Bonnet. The S.S. Internals (Plug & Seat) ensure that there is no leakage when the valve is in operation. Our safety valves are designed as per IBR, API, ASME & ANSI standards
- Size: 25 x 50 NB, 40 x 80 NB, 50 x80 NB, 80 x 100 NB, & 100 x 150 NB
- End Connections : Inlet ASA 300 / Table 'H' Outlet ASA 150
- IBR Certificate : Available For IBR Applications
- MOC: Cast Steel Body with SS Internals (As per ASTM Standards)
- Max. Design Pressure : 52 kg/cm2
- Max. Design Temperature : 427oC
