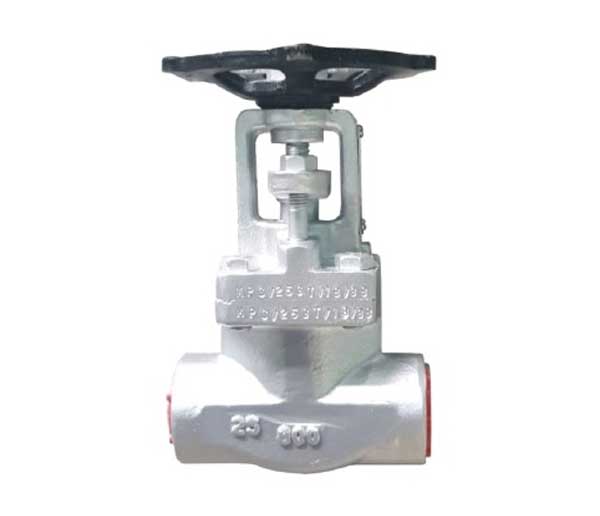

Forged Valves - Gate & Globe
A Forged Valve is a robust, linear motion isolation valve designed to completely stop or allow the flow of fluid in high-pressure and high-temperature applications. Manufactured from high-quality forged steel, it offers enhanced strength, compact construction, and superior performance in critical services.
- Size: 15 NB, 20 NB, 25 NB, 40 NB & 50 NB.
- Rating: IBR Approved ANSI Class 800
- Options: IBR / Non-IBR
- MOC: ASTM A105
- End Connections : Screwed BSPT & Socket Weld
- Max. Pressure: 139 kg/cm2
- Max. Temperature : 427oC
