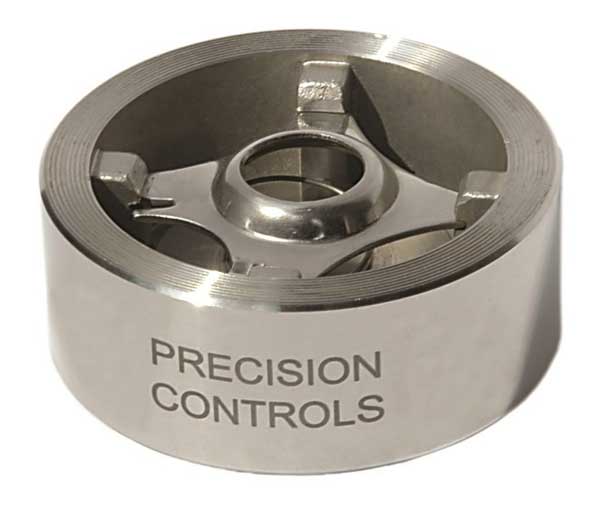

Flow Check Valves
Our flow check valve is an IBR approved in-line product which can be used in any application- water, condensate, liquid etc.
This is a sandwich-type valve which fits between two flanges (of any class), hence making it easy to install.
The valve should be fitted in the direction of flow (i.e. according to the arrow shown on the body of the valve.
Ensure that there is no reverse flow in your line.
- Size: 15 NB to 200 NB
- Options: IBR / Non-IBR
- Material: ASTM A 315 Gr. CF8M (SS316)
- Max. Working Pressure: 47.5 kg/cm2 (In Water line)
- Max. Temperature: 115oC (In Water line), 427oC (In Steam line)
