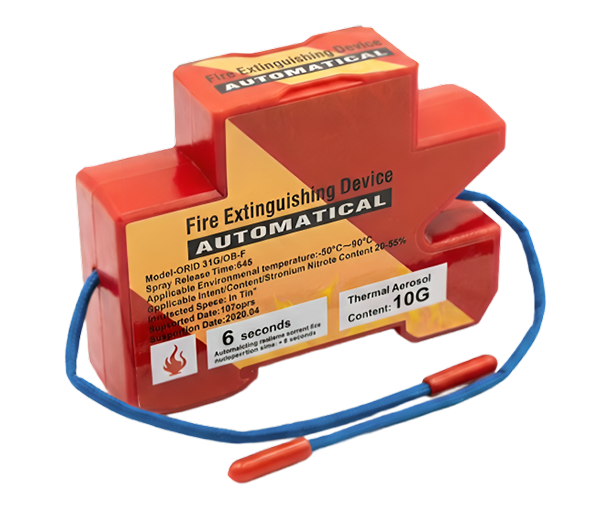

Din rail aerosol fire extinguisher
The DIN rail aerosol fire extinguisher is the most cost-effective tool for protecting electrical cabinets and control
panels.
It can be mounted directly into electrical installations. It provides automatic fire protection in cabinets where
electrical fires are likely to occur.
It achieves a fundamental shift from traditional fire suppression methods. This
makes electrical cabinet fire suppression both economical and affordable.
- Activation Method: Heat Sensitive Thermal Trigger
- Activation Temperature: Approx. 170°C
- Aerosol Discharge Time: ≤ 6 seconds
- Fire Suppression Type: Total Flooding within Enclosure
- Fire Class: Electrical, A, B & C Type Fires
- Thermal Activation: Automatic
- Spray Release Time: < 6 seconds
- Operating Temperature: -50°C to +90°C
- Service Life: 10 Years
- Housing Material: Flame Retardant Engineering Material
- Installation Orientation: Vertical or Horizontal
