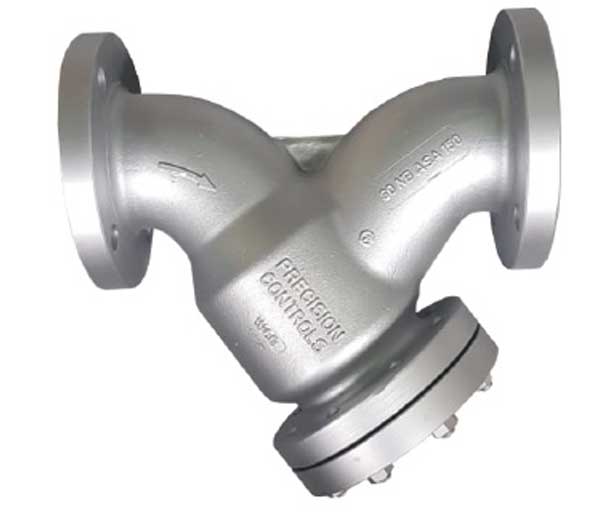

Large screening area makes the strainer very efficient.
Screen is guided in body and cover.
Strainer may be installed in Vertical lines & horizontal lines with effectiveness.
Fine finish and smooth contours of flow way reduce the pressure drop.
Drain plug is provided in larger sizes to drain out the foreign particles accumulated in the strainer.

Sizes Available: 50 NB, 80 NB, 100 NB, 150 NB, 200 & 250NB
Rating: IBR Approved ANSI Class 150, 300, 600, 900 & Higher On request
End Connections: Flanged / Butt Weld
Material: Carbon Steel (A 216 Gr. WCB) / Alloy Steel (A 217 Gr. WC6) / SS (CF8M)
Larger Sizes: Available On Request
Screen: SS (40 Mesh) & Others On Request
